Extra Heavy Duty 3 Prong Tyre Swivel - Commercial

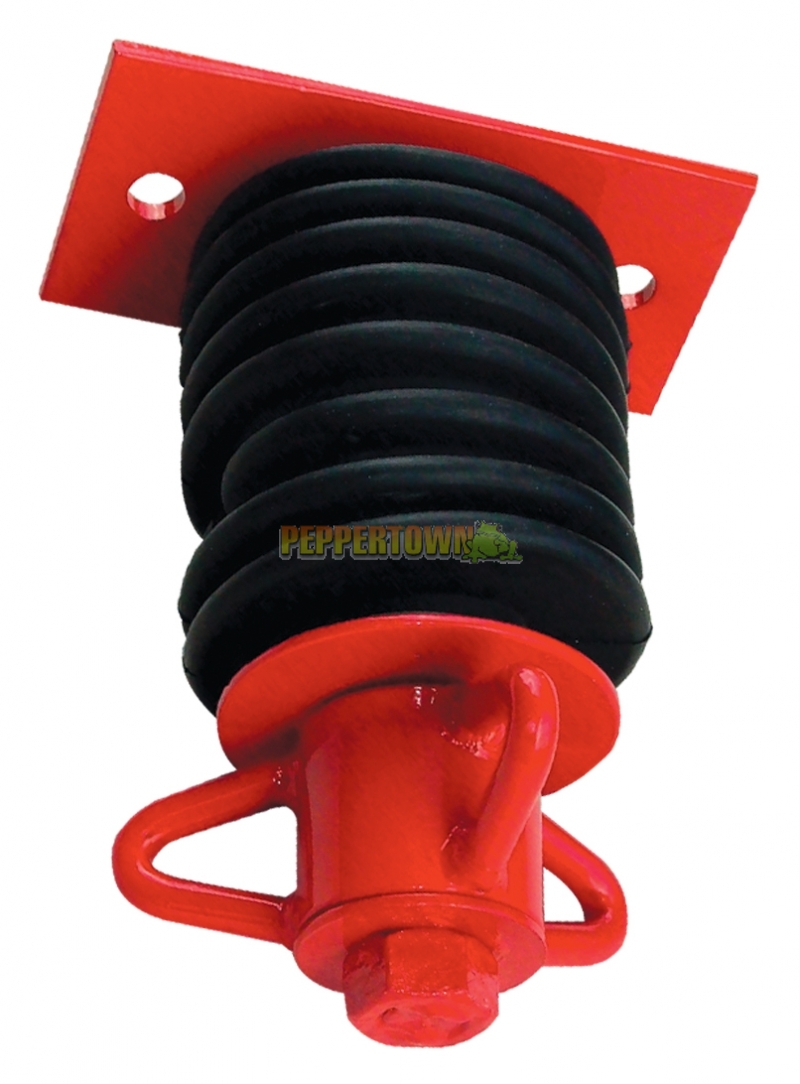

This tyre swivel has 3 prongs to prevent chains from tangling. Our heavy duty commercial tyre swivel has a rubber boot to prevent fingers form being pinched. It is for wood swing set frames. The plate is 12.7cm x 5.08cm with two 22.86cm holes that are 10.16cm center to center. It hangs down 21.59cm from pipe. Powder coated in a bright red finish. You can use the H140 – H150 or the H172 for this. This product should last 2 years in harsh conditions and up to 5 years in optimal conditions. Some conditions may require replacement sooner. Tensile strength 5000 lbs.

Installation: Grease the Tyre Swivel before using. Tyre Swivel must be installed in a bay without any other components. For tyre swings, extend surfacing in a circle whose radius is equal to the height of the suspending chain or rope, plus 6 feet in all directions. Place tyre swivel on wood beam and mark holes with pencil or pen on wood. Drill two 7.62cm holes. Then, bolt tyre swivel to wood beam with 7.62cm bolts with the length depending on thickness of the wood, plus two flat washers, one on top and one on the bottom of the bolts and secure with a 7.62cm nylock nut. (Bolt, washers and nuts are not included.) Put bolts and washers through beam so that nuts are on the bottom of top beam, and so that the bolt is attached with no more than two thread showing beyond the nut. This will prevent a protrusion on the top beam. You will need to use S-hooks or H shackles from the chain to the swivel. Make sure the S-hooks are closed to within .04 to meet ASTM safety standards. To do this you will need to use our S-hook pliers or a regular pair of channel lock pliers. Close according to Fig A1.19 for Fastening Devices. WARNING: Once the S-hooks have been opened they will have to be replaced to avoid injuries from coming open and/or breaking. Make sure that if you are using shackles they are also tightened correctly. No bolts should protrude over two threads past its nut.

Safe Use: This is for children 2 - 12 years old only. Adults should supervise children at all times. Do not allow children to use unsafely. Do not allow it to be used if damaged.

Maintenance: Do the following to reduce the chance of serious injuries. At beginning and end of each play season and once a month during play season, check for rusty or worn chain. Carefully check hole around fasteners to look for wear. Check for vandalism. Check to make sure s hooks and/ or H-shackles are closed properly. Check spinning action and make sure there is no binding, and using a grease gun put a sufficient amount of standard grease into the swivel through the grease fitting. You will see the grease come out when it is full. We have used a McKay Molybdenum Disulfide grease cartridge, but any standard grease cartridge from any auto part store should be sufficient. There are two grease fittings that must be checked and filled with grease during maintenance. The first is at the bottom of the hanger in the swivel head and is easily seen and reached. The other grease fitting is harder to reach, and is located under the rubber boot on the universal joint. However, it is important that this grease fitting be checked also. To do this: Cut the zip tie holding the rubber boot. Take two flat head screw drivers and lift the boot down, so that you can put the grease gun nozzle on the grease fitting. Put in sufficient grease. Raise up the rubber boot and secure with another zip tie. Cut off excess plastic tail on zip tie. Make sure all nuts and bolts are secure and not worn. Look for loose parts, torn or missing rubber boots, cracks in metal or rust. Replace parts necessary for safe use. Maintain detailed inspection and maintenance records for public-use playground equipment.
